SRM Campagnolo PM9

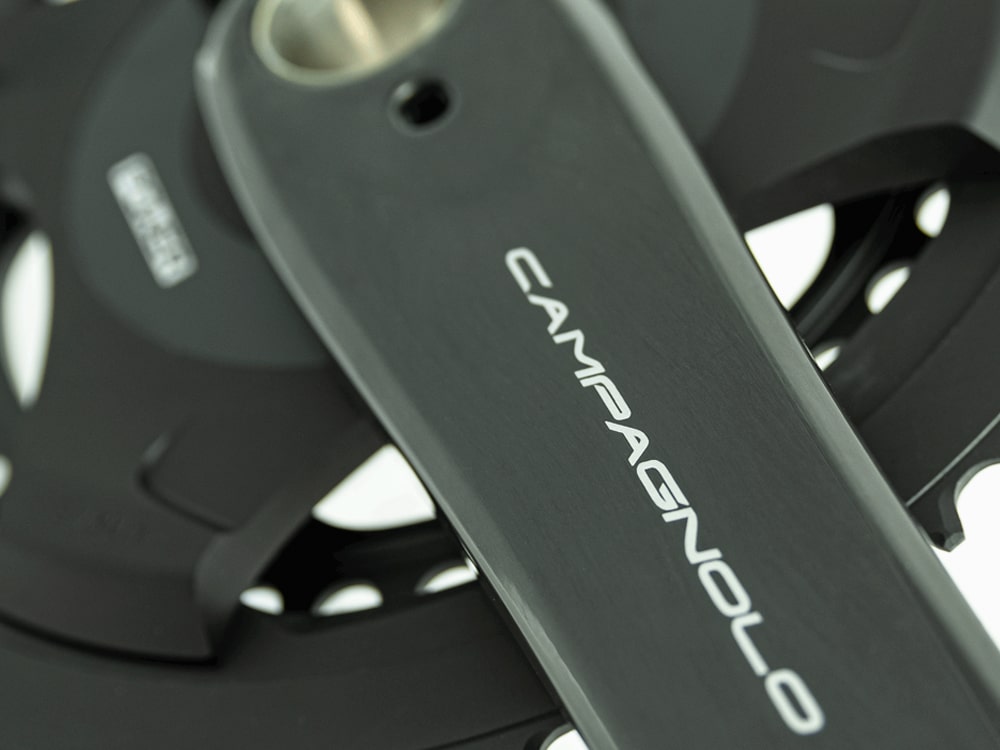

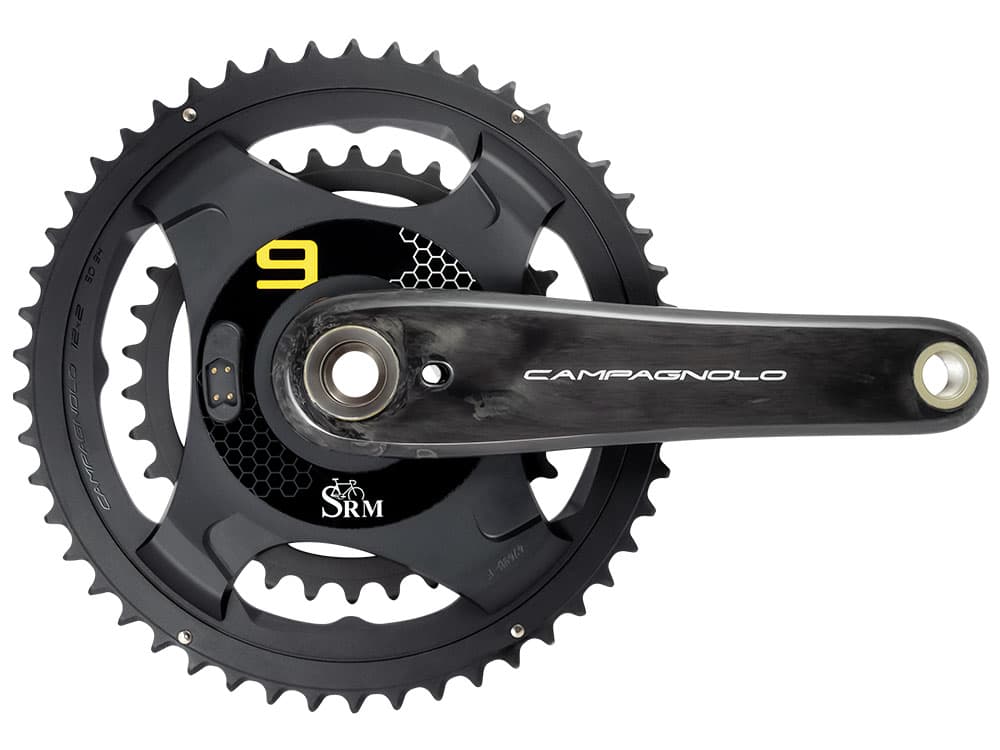

With the Campagnolo power meter SRM also offers a version of the PM9 power meter for Campa fans. The SRM Campagnolo PM9 is a double-sided spider-based power meter with carbon crank arms and chainrings. The SRM Spider Powermeter is now available in the 9th generation. At first glance, the crank arms do not differ from the Campagnolo Record crankset. On closer inspection, however, it is noticeable that instead of the seamless transition to the crank spider now sits the SRM power meter. The cranks are manufactured exclusively for SRM by Campagnolo.

With the latest generation, the SRM power meter has ANT+ and also Bluetooth LE (Bluetooth Smart) and is thus compatible with many bike computers and smartphones.

Each SRM power meter is produced exclusively and custom made to order in the SRM factory in Jülich near Cologne - this results in a delivery time of about 2-3 weeks.

SRM power meter in the 9th generation

SRM (Schoberer Rad Messtechnik) was founded in 1986 by engineer Ulrich Schoberer. The power meter he developed and patented was the first of its kind and revolutionized training and competition in professional cycling. SRM's constant development and refinement of its patent has resulted in the 9th generation crank-based power meter. This keeps SRM at the cutting edge of technology and is still considered the gold standard of power measurement.

Dual-sided measurement

The 9th generation SRM power meter sits in the crank spider. It uses a combination of angle and torque measurement. As a result, it now has a higher accuracy at low cadence, also the use of oval chainrings (Q-rings) is no problem. The measurement of the left and right leg is not completely independent as with a pedal-based power meter. The force from the crank spider to the chainrings is measured. However, thanks to intelligent algorithms, the left-right distribution and the combined "pedal smoothness" can still be displayed. Especially with muscular imbalances, one is at an advantage with both-sided systems.

Compatible bike computers and smartphones

ANT+ capable bike computers (Garmin, Wahoo, O-Synce, Sigma, SRM, etc.) work without problems with the SRM power meter. Since the data transmission also takes place via Bluetooth Smart, the power meter can also be paired with smartphones.

Chainrings

The power meter can be supplied optionally with or without chainrings.

Construction and design

The SRM PM9 sits in the crank spider and is well protected there against mechanical influences. SRM power meters are designed to function optimally even under the harshest conditions. Whether in the rain, snow or mud, SRM power meters defy even the most adverse weather conditions. The low-profile design does not allow dirt to penetrate, reduces the overall weight and makes the SRM power meter a long-lasting training partner. The high manufacturing quality (Made in Germany) and use of high-quality materials guarantee high reliability.

Tour tested

SRM has always been very involved in professional cycling. Thus, the PM9 was also used at the Tour and other high-profile bike races and put through its paces.

Battery or rechargeable battery

The SRM PM9 is optionally available with a battery or a rechargeable battery. The battery has an unbeatable operating time of 1400h and thus lasts for many years. After that, the power meter must be sent to SRM for battery replacement. The rechargeable battery allows an operating time of over 100h and can then be recharged through a magnetic plug.

Weight

The crankset of the SRM Campagnolo power meter including axle and chainrings weighs 780g.

Accuracy

We were able to confirm the measurement accuracy of +-1% with our calibrated Cyclus II ergometer in the laboratory and in comparison with other power meters on the road.

Cadence

The cadence is determined in the power meter and transmitted to the bike computer or smartphone. An additional cadence sensor or cadence magnet is no longer necessary.

Temperature compensation

If temperatures change, different materials expand differently. This can have a significant impact on the measurement accuracy of a power meter, as the strain gauges react to even the smallest changes. The integrated temperature sensor of the SRM PM9 ensures the highest possible accuracy even under changing weather conditions.

Calibration

Each individual SRM power meter is individually calibrated at the factory. Something else is the zero calibration (also called "Zero Offset" or "Manual Zero"), which should be done before every ride. This is similar to a scale that also "zeros" itself before weighing. Zero calibration can be done with the bike computer or smartphone.

Oval chainrings

Many power meters have problems with oval chain rings resulting in deviating measurements. Thanks to a combination of angle and torque measurement, the PM9 can now measure with higher accuracy even in situations with very low cadence and oval chainrings no longer affect the measurement.

Setup / Firmware Updates

Unlike other power meters, the SRM power meter does not need to be specially set up or registered. The correct crank length is already stored in the power meter. Firmware updates require the SRM App (Android & iOS) and a smartphone. We recommend to always use the latest firmware of the power meter and the cycling computer.

Installation

The SRM Campagnolo Road Carbon PM9 simply replaces the existing crank. Most likely, a readjustment of the front derailleur is also necessary. A true plug 'n play power meter, the SRM PM9 is not. If you want to change your power meter more often between different bikes, then we would advise you to another alternative.

Durability

We have had very good experience with the durability of the SRM PM9 power meter. Due to the well-protected location of the power meter, it is well protected against mechanical influences. In a crash, for example, a pedal power meter usually gets something off. Here, the SRM can score.

Warranty and support

The SRM PM9 power meter comes with 2 years warranty. The power meters and cranks are produced by SRM in Germany. The support is very good and customer-oriented. If there ever is a problem, we have a direct line to SRM and can help you quickly.
